Going Places with the Recognized Text

Now that we’ve done everything right and the recognition was successful, to which applications can we export the text results?

Each OCR package has its own list of supported applications, so we’ll only discuss the common output methods of the major OCR packages.

You can output documents to the clipboard, save the documents to an external file, send the recognized document by mail — as long as your e-mail client is MAPI compliant, it’ll work —, send the recognized documents to a “target application” or save them in “the cloud”.

Target applications may require some explanation: after the recognition, the recognized document gets sent directly to your text application, for instance Microsoft Word. If that application doesn’t run yet, the OCR software starts up the word processor for you and the text gets inserted. The result shows up in your application, ready to be edited. Has there ever been a more seamless integration with your text applications?

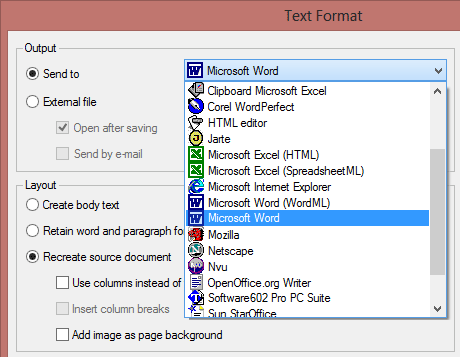

Control panel for text formats

Saving in “the cloud” is a new trend of the last years: you add the recognized documents to your Dropbox, Evernote, OneDrive, Google Drive etc. account. And saving to an FTP server is the private version of the same idea.

Dropbox logo         Evernote logo         One Drive logo

Or save the recognition result to disk. All popular word processors and text formats are supported: Microsoft Word (*.docx and *.doc), RTF (“Rich Text Format”) (*.rtf) and WordML (*.xml), Corel WordPerfect etc. Some OCR software even supports the “open source” office suites AbiSource, Ability, Software602, Oracle StarOffice and its “spin-off” version OpenOffice.org. And don’t forget the “poor” text formats that generate “plain text” (ASCII and ANSI)…

Unicode is also often supported. It is a truly “universal” format that’s specifically interesting to store documents in “exotic” languages: it allows you to encode any language. You just need the proper word processor to view and edit the result. You for instance get full Unicode support from Microsoft Office 2000 (for Windows) and Microsoft Office 2004 (for Mac OS) onwards, so, you’re OK with any recent version!

Control panel for plain text formats

The major web browsers such as Microsoft Internet Explorer, Firefox, Chrome and Safari, the popular HTML editors and the Adobe Reader-Adobe Acrobat software are supported too.

Control panel for PDF text formats

Support of the HTML format is most useful for those users who want to take their documents directly to the Internet — or post them on their Intranet server. (State-of-the-art OCR software supports the standard HTML 4.0, also known as “WYSIWYG” HTML, and the latest version HTML 5.0.)

Control panel for web text formats

The formats XML and Word ML, an intermediary format that never caught on and was limited to Office 2003, as you find in Microsoft Office are also supported in advanced OCR solutions.

The Adobe Acrobat PDF format often has special relevance for people that archive documents or make them available for downloading on the web. PDF files are called “portable” because they can be viewed and printed on any computer — a Windows or Linux PC, a Mac OS computer or a Unix machine. Hence the popularity of this document format on the Internet.

The second solution for non-editable documents — Microsoft’s competitive product for Adobe’s PDF format if you will —, the XPS format, is also supported these days. The advantage is that, depending on the configuration of your PC, these documents open in the XPS viewer, a standard component of Windows, or in your web browser Internet Explorer!

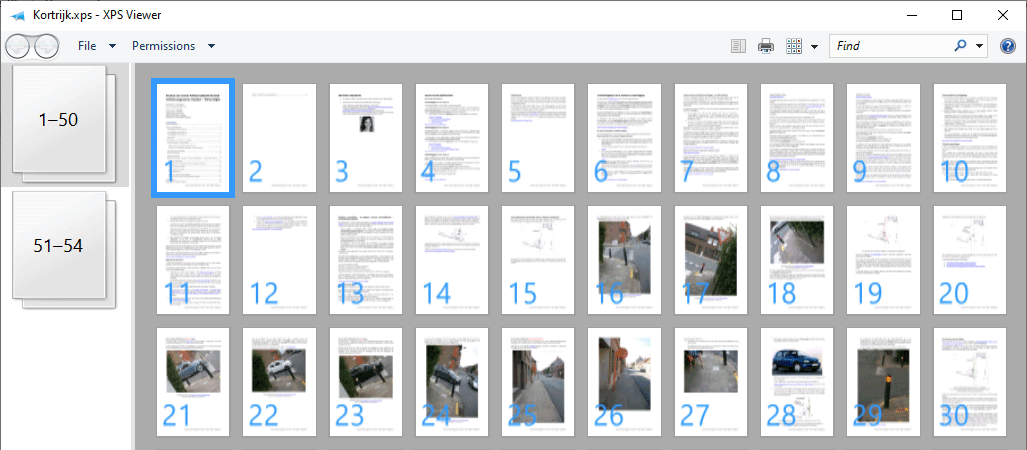

XPS Viewer

This is a totally different approach: the recognized text is read aloud with text-to-speech (“TTSrdquo;) technology! It may even become an audio file such as MP3, which allows you to distribute, say, a CD or podcast with the content of the scanned document!

Advanced OCR software recognizes tables — price lists, addresses etc. — as easily as text. The “old” Microsoft Excel format (*.xls) is supported, and so is the newer XML-based Excel format (*.xlsx). (Here again, the intermediary format SpreadsheetML of Excel 2003 may be supported too.) You’ll come across some other table formats that always include the “generic” CSV format (comma-delimited data) and often tab-delimited Text files.

But you can also output tabular data to word processors and web browsers: tables gets reconstructed cell by cell and inserted as table objects in word processor files!

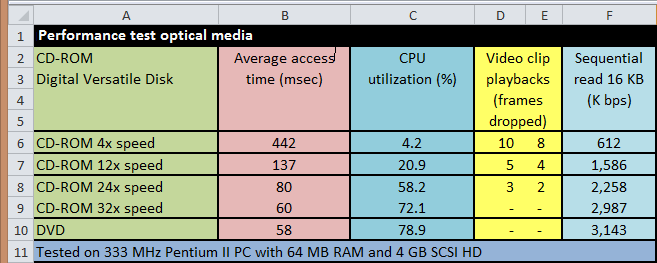

OCRed table in the Excel spreadsheet

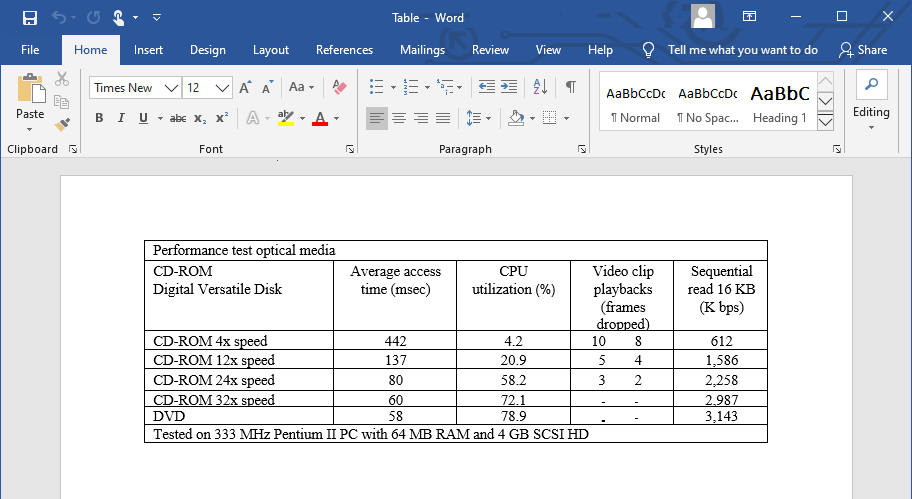

Recognized table in the Word wordprocessor

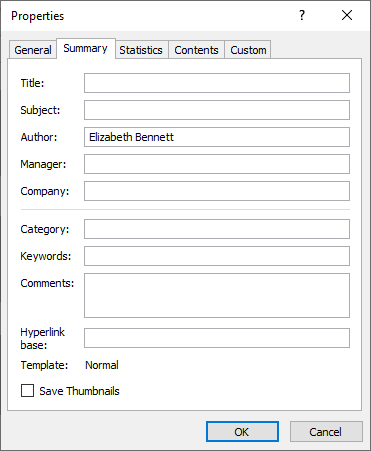

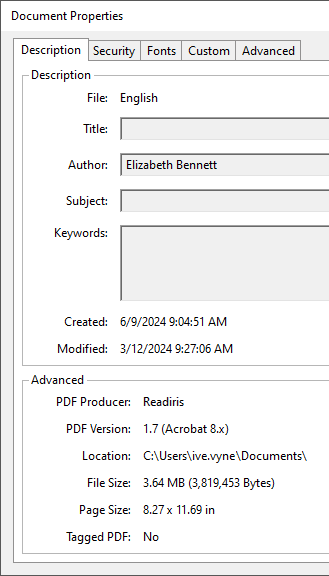

Up-to-date OCR software also handles the document properties. Document properties contain the title of a document or worksheet, the name and company of its author, its subject, some keywords and comments etc. Document properties are obviously used to sort and search files; they in fact offer a primary level of document indexing.

Recognized table in the Word wordprocessor          Recognized table in the Word wordprocessor

Graphics can be saved in the major graphic formats — say, JPEG, TIFF, Paintbrush (*.pcx) and Windows bitmaps (*.bmp). As is the case with tables, you can recognize a document and include the graphics inside the resulting text document.
